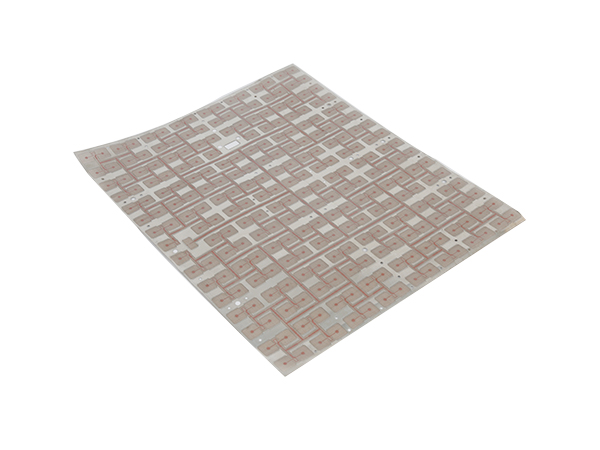

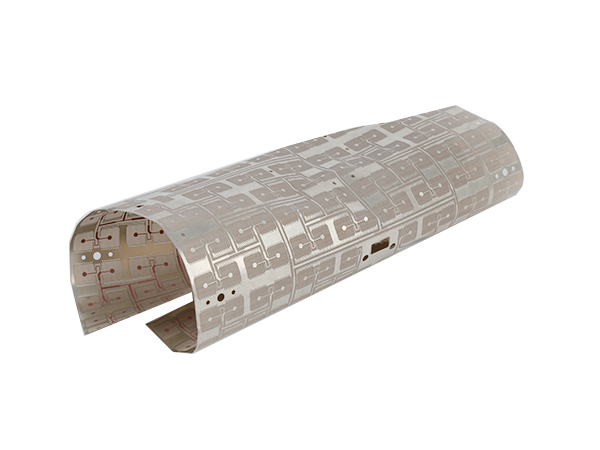

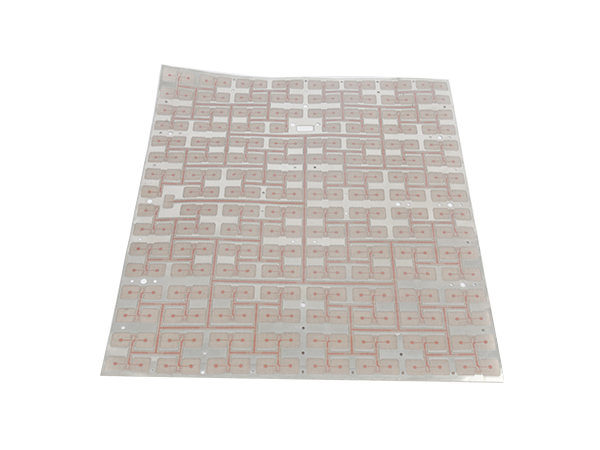

Product name: High frequency PCB
Material: TACONIC
Layers: 2layers
Copper: 1oz
Thickness: 0.20mm
Surface finishing: Immersion silver
Soldermask: transparent soldermask
Application: military industry
| High Frequency PCB----production Capacity | |||
| NO | Item | Description | Specification |
| 1 | Rogers material | RO3000 series | Ro3003、Ro3006、Ro3010、Ro3035、Ro3203、Ro3206、Ro3210 |
| 2 | Rogers material | RO4000 series | Ro4003C、Ro4350B、Ro4360、Ro4533、Ro4700、Ro4835 |
| 3 | Rogers material | RT5000 series | RT5870、RT5880 |
| 4 | Rogers material | RT6000 series | RT6002、RT6035、RT6006 |
| 5 | Rogers PP | prepreg | Ro4403(4mil)、Ro4450B(4mil)、Ro4450F(4mil)、RO3001(1.5mil） |
| 6 | Arlon material | Arlon series | Diclad、Cuclad、Isoclad、AD series、CLTE |
| 7 | Arlon PP | prepreg | 25FR 1080（4mil）、25FR 2112（6mil）、Cuclad6700（1.5mil） |
| 8 | Taconic material | Taconic series | TLX、TLY、RF、TLC、TLG series、CER10 |
| 9 | Taconic PP | prepreg | TP-32（4mil）、TPG series（4mil）、HT1.5（1.5mil) |
| 10 | Wangling material | wangling | F4BK、F4BM、F4B、TP-1/2、TF-1/2、CT330、CT350、CT440、CT615 |
| 11 | Finished Copper | oz | 0.5oZ - 2oZ |
| 12 | Based Copper | oz | 0.5oz - 1oZ |
| 13 | Max size | RO3000 series | 590*440mm（S/D） 、580*420mm（Multilayer） |
| RO4000 series | 1200*430mm（S/D）、880*600mm（Multilayer） | ||
| RT5000 series | 590*440mm（S/D） 、580*420mm（Multilayer） | ||
| RT6000 series | 590*440mm（S/D） 、580*420mm（Multilayer） | ||
| F4BM series | 1480*430mm（S/D） | ||
| TP/TF series | 180mm*180mm（S/D） | ||
| CT series | 1200*430mm（S/D）、880*600mm（Multilayer） | ||
| 14 | Min.Size | 0.5*1.0mm | |
| 15 | Layer | 1-32L | |
| 16 | RF mixed layer | 4-32L | |
| 17 | Material mixed | Rogers/Taconic/Arlon/Wangling with FR-4 | |
| 18 | Min core thickness | mil | 4mil |
| 19 | PTFE max panel size（Thk≤0.50mm） | Unit：mm | 16*18 |
| 20 | Finished Thickness | Unit：mm | 0.13-8.0mm(Double) 0.4 -8.0mm(Multilayer) |
| PTFE min drilling | Unitmm | 0.35 | |
| 21 | Dielectric constant | Range | 1-25 |
| 22 | Material thickness tolerance | Unit：mm | ±0.05mm |
| 23 | Finished thickness tolerance | Unit：mm | Thickness≤1.0mm: ±0.1 , Thickness>1.0mm: ±10% |
| 24 | Min.Line tolerance | Unit：um | ±20um |
| 25 | Min.Spacing tolerance | Unit：mm | 0.076mm |
