LED Linear Light pcb

Type of PCB:

Number of layers:

Overall dimensions of PCB:

Final boards thickness:

Copper weight:

Surface finishing:

Plugging or Filling holes:

Soldermask:

Special technology:

Application:



Product Description

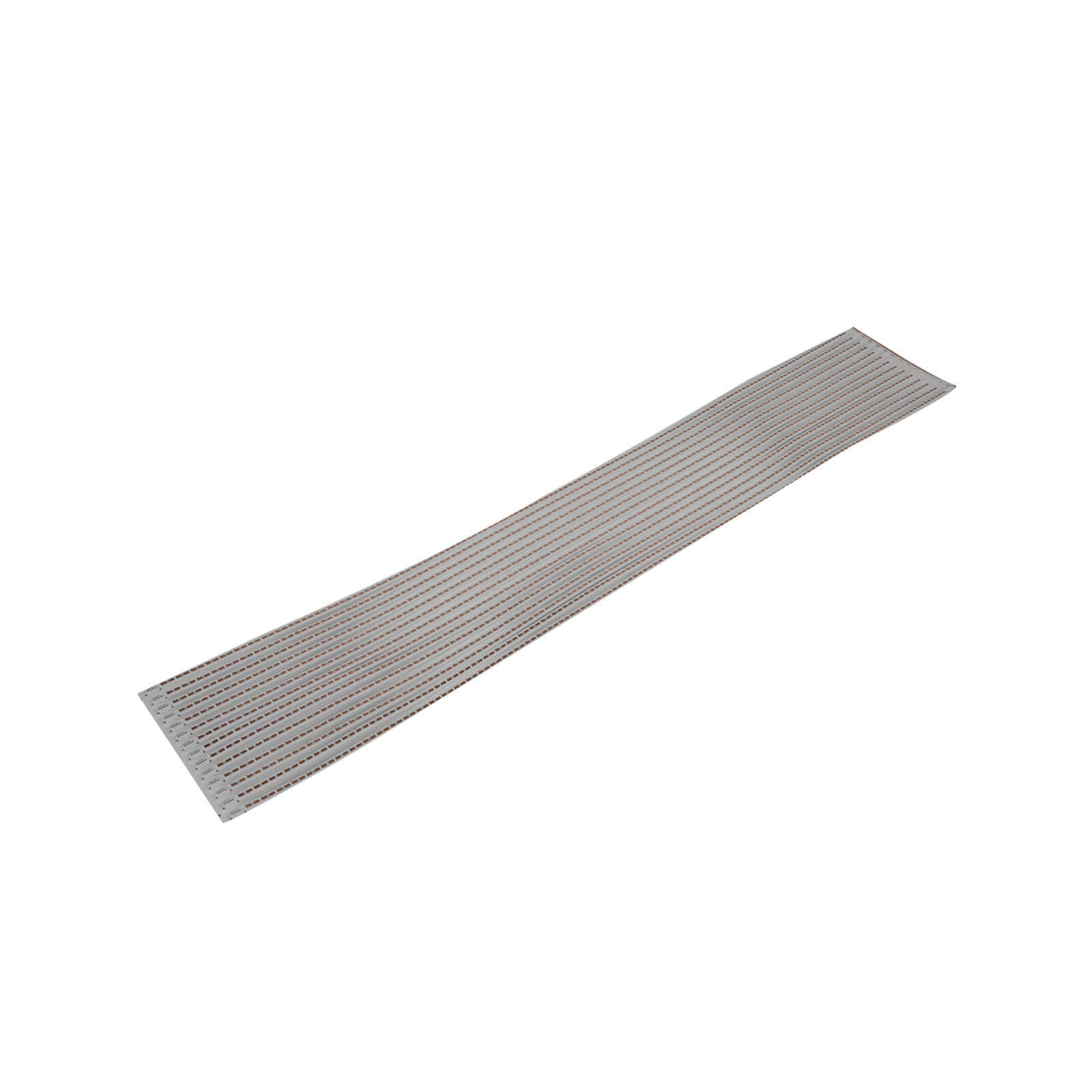

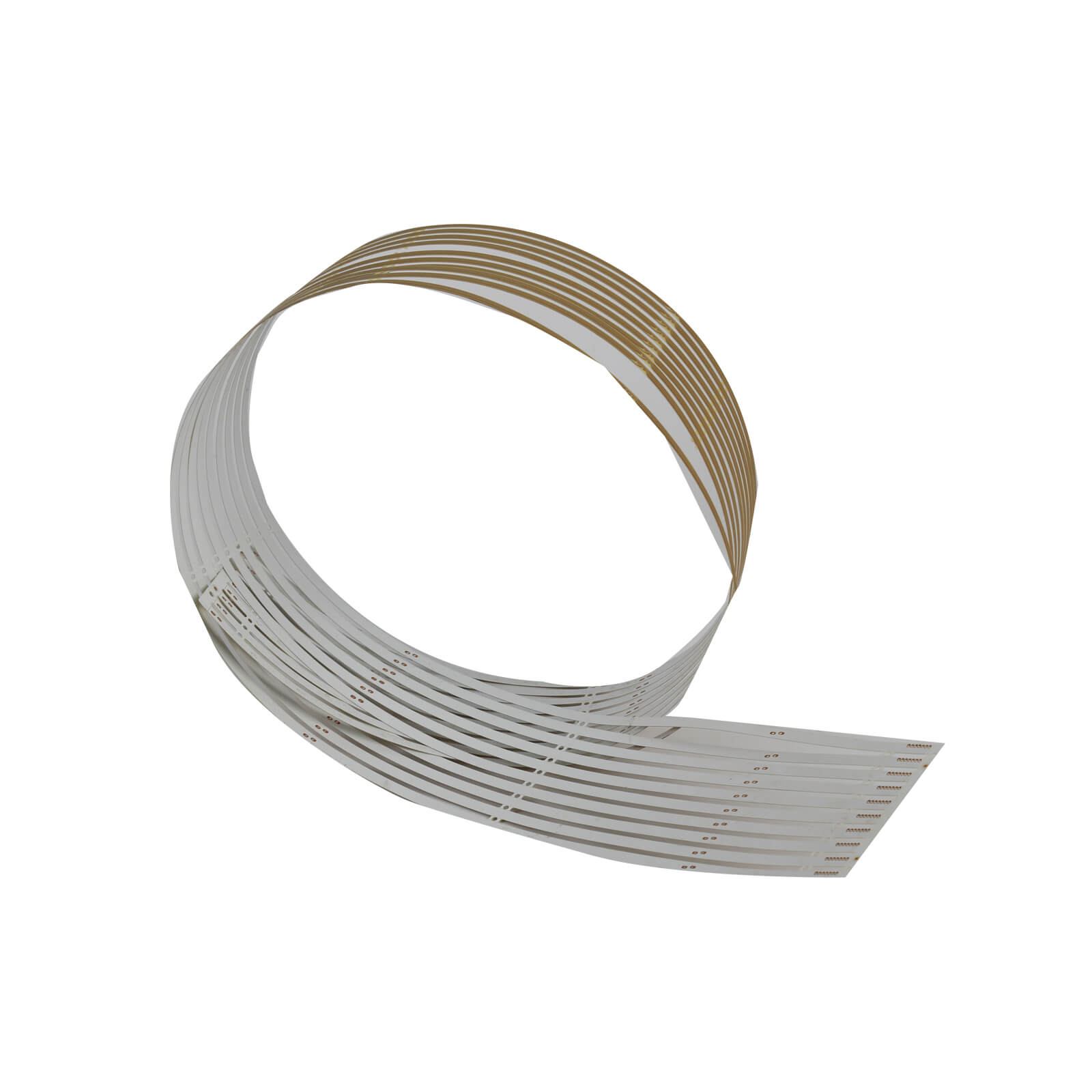

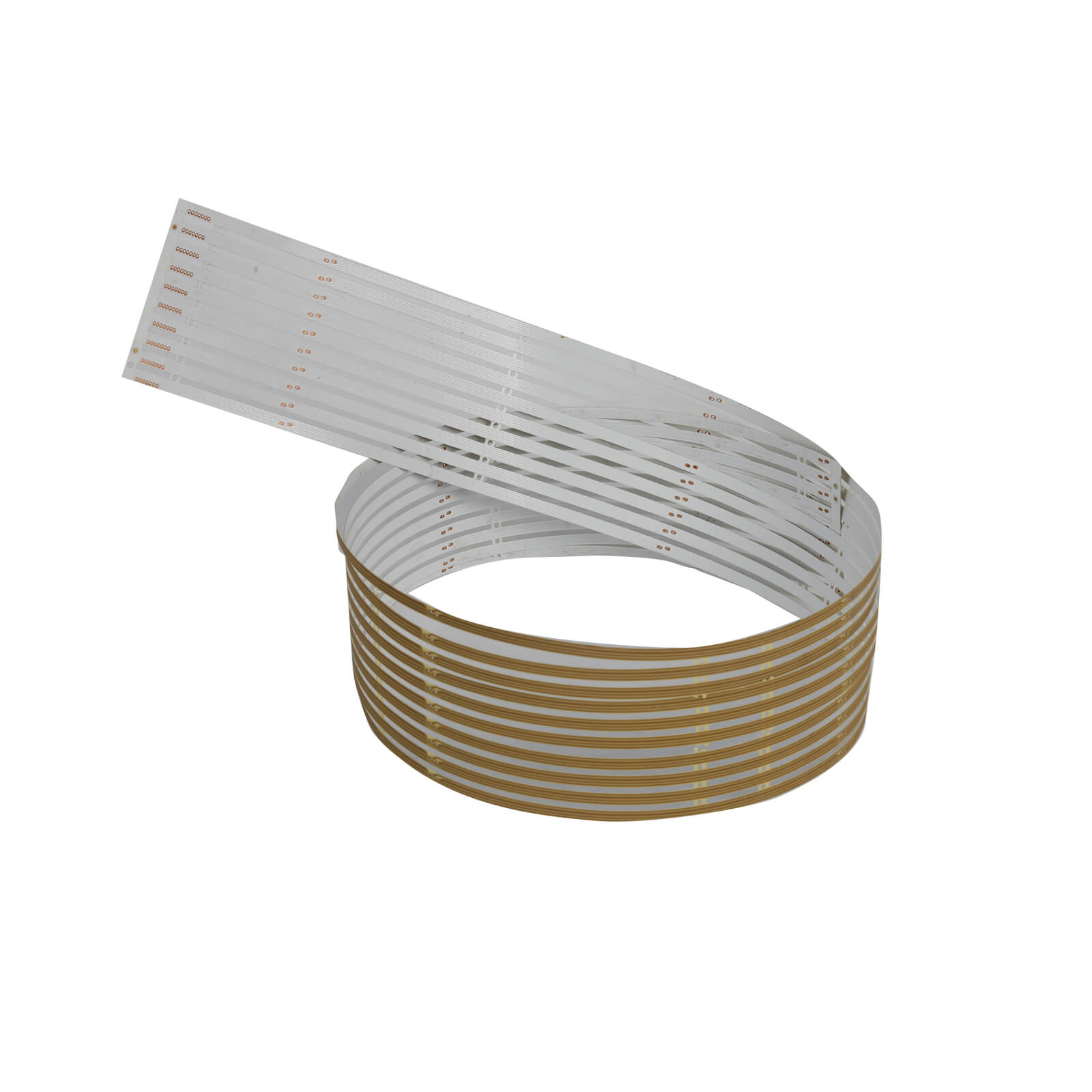

LED Linear Light  PCB

Name:

LED Linear lighting PCB

Material:

 FR4

Thickness:

0.2mm

Layer:

2L

Copper:

35um

Soldermask:

NO

Surface finished:

OSP

Min.Line width

75um

Min.Line spacing:

75um




H-CELERITY PCB LIMITED Medium and small batch  PCB board manufacturing, 1-32 layer PCB processing technology, minimum line width/spacing 2.5/2.5mil, copper thickness up to 12oz, meet the high heat dissipation requirements of power products,support blind hole, nickel palladium, selective gold, step hole groove, inner and outer layer impedance matching, resistance range: 45-110Ω.


Multilayer PCB boards production capacity:

1

Layer

1-32layer


3

Raw Material

FR-4


4

Soldermask

Taiyo,Guangxin


5

Max size

1000×600mm

4layer:1000*500mm

6layer:900*500mm

8layer:625*500mm

10/12layer:400*300mm

6

Min size

1×1mm


7

Max boards thickness

6.0mm

Standard:0.10/0.15/0.25/0.3/0.4/0.6/0.8/1.0/1.2/1.6/2.0/2.4/3.0mm

8

Min boards thickness

0.10mm

9

Min core thickness

0.04mm

40um

10

boards tolerance

±10%

Min. 0.03mm

12

bow and twist

0.75%

special controlled ≤0.5%

13

Max drilling

Φ6.5mm

Special > 6.5mm

14

Min drilling

Φ0.05mm

Standard: > 0.15mm

17

Min copper thickness

1/8oz

standard: 1/2oz

18

Max copper thickness

12oz

standard: 2-6oz

23

PTH tolerance

±0.075mm

Special: ±0.05

24

NPTH tolerance

±0.05mm


25

Hole shift tolerance

±0.05mm


26

Vias copper

≥20μm


27

Outlayer design rule(Line width/spacing)

T/Toz: 2.5mil/2.5mil(T=1/3oz)


H/Hoz: 2.5mil/2.5mil

1/1oz: 3mil/3mil

2/2oz: 6mil/6mil

3/3oz: 10mil/10mil

4/4oz:14 mil/14mil

28

Inner layer design rule (Line width/spacing)

T/Toz: 2.5mil/2.5mil(T=1/3oz)


H/Hoz: 2.5mil/2.5mil

1/1oz: 3mil/3mil

2/2oz: 6mil/6mil

3/3oz: 10mil/10mil

4/4oz:14 mil/14mil

29

Etching tolerance

±20%

Special: 10%

34

Min soldermask bridge

2mil


35

Soldermask filled vias

≤0.45mm


36

electroless nickel immersion gold/nickel

100-200uin(μ")


37

ENEPIG standard

NI:200u"


Pd:1-10u"

Au:1-10u"

38

electroless nickel immersion gold/gole

1-3uin(μ")

special: 5-200U"

39

Tin thickness(HASL)

2-40μm


40

Selective Electric gold + Gold finger

AU:3-100u"

no plated line residual

42

Routing tolerance

±5.2mil(0.13MM)

Larser ±2mil(0.05MM)

43

Hole to edge tolerance

±7mil(0.177MM)

Special ±6mil(0.15MM)

44

Min inside Angle

R≥0.5mm


Email us, we will send the multilayer PCB stack up PDF file to you for design reference.
