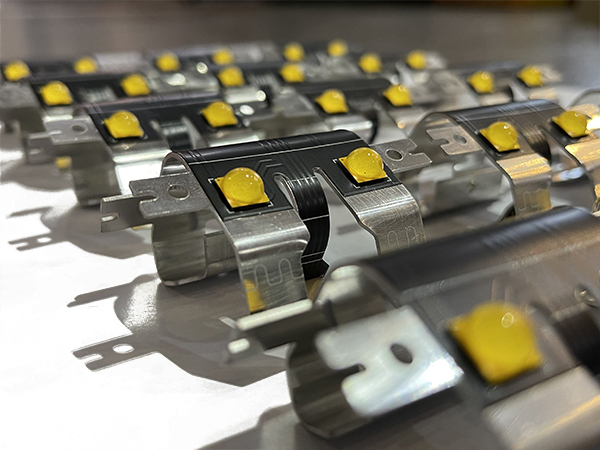

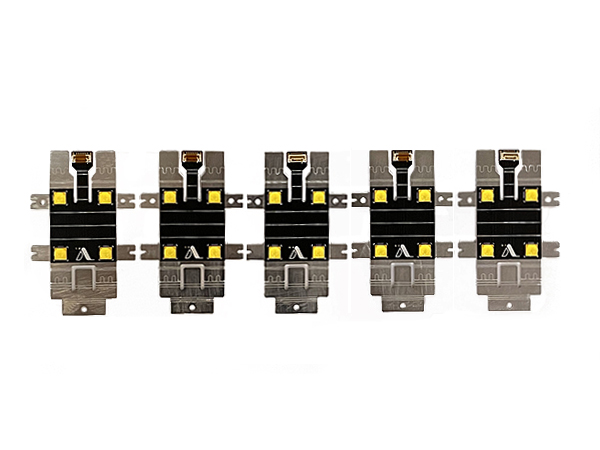

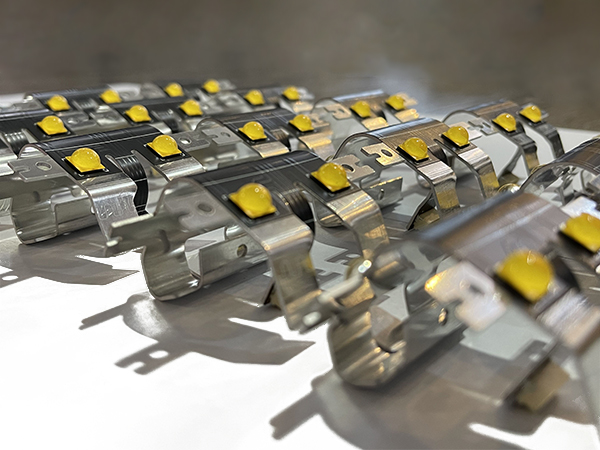

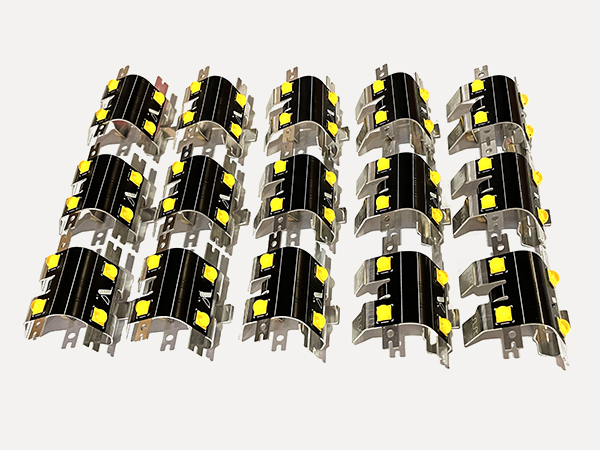

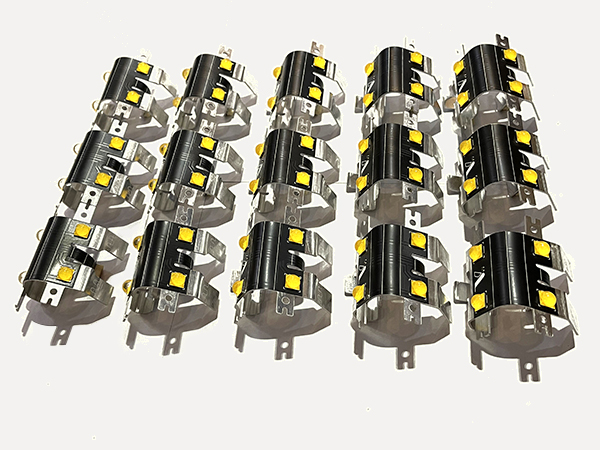

1.0mm bending flex aluminum pcb boards | |
Name: | 1.0mm bending flex aluminum pcb boards |
Material: | Ventec VT-4B5 4.2W/MK |
Thickness: | 1.50mm |
Layer: | 1L |
Copper: | 35um |
Soldermask: | Taiyo White soldermask |
Surface finished: | HASL Leadfree |
Max. Size: | 2000x600mm |
Min.aluminun pcb thickness: | 0.2mm |
H-CELERITY PCB LIMITED has been manufacturing aluminum pcb boards for led since 2010, which can produce 1-4 layers, thermal conductivity of 1.0W--8.0W/MK, copper thickness of 1-20oz, Common Dielcctric Layer thicknesses are 50um, 80um, 100um, 150um, 200um, white soldermask will not turn yellow after reflow soldering aluminum pcb panels will not separate, providing customers with a stable cooling solution.
Our aluminum pcb material manufacturer:
Bergquist , Laird , Ventec , POLYTRONICS, Huazheng, Qingxi, Boyu, GDM, Shengyi
Aluminum series: 1xxx series, 3xxx series, 5xxx series, 6xxx series
Aluminum PCB Classification:
Single/double layer aluminum pcb boards, Multilayer aluminum pcb
Single-side double layer aluminum pcb, Double core aluminum pcb, thermoelectric aluminun pcb
BERGQUIST | MP06503、HT04503 |
TACONIC | TLY-5、TLY-5F |
Quanbao | T-110、T-111 |
Ventec | VT-4A1、VT-4A2、VT-4A3、VT-4B3、VT-4B5、VT-4B7 |
Laird | 1KA04、1KA06 |
POLYTRONICS | TCB-2L,TCB-2AL,TCB-3,TCB-3-05,TCB-4,TCB-8 |
Qingxi | 1.0W/MK --- 8.0W/MK |
Boyu | 1.0W/MK --- 8.0W/MK |
GDM | ≤1.0W/（m•K）,1.0<λ≤1.5 W/（m•K）；1.5<λ≤2.0 W/（m•K） |
breakdown voltage | 2.0-4.0KV |
Cooper Weight | Hoz-20oz |
Flame Rating | 94V-0 |
CTI | 250-600V |
Min drilling | 0.20mm |
Max size | 2000x600mm |
Min size | 1x1mm (Miniled pcb) |
Laser tolerance | ±0.05 |
CNC tolerance | ±0.15 |
